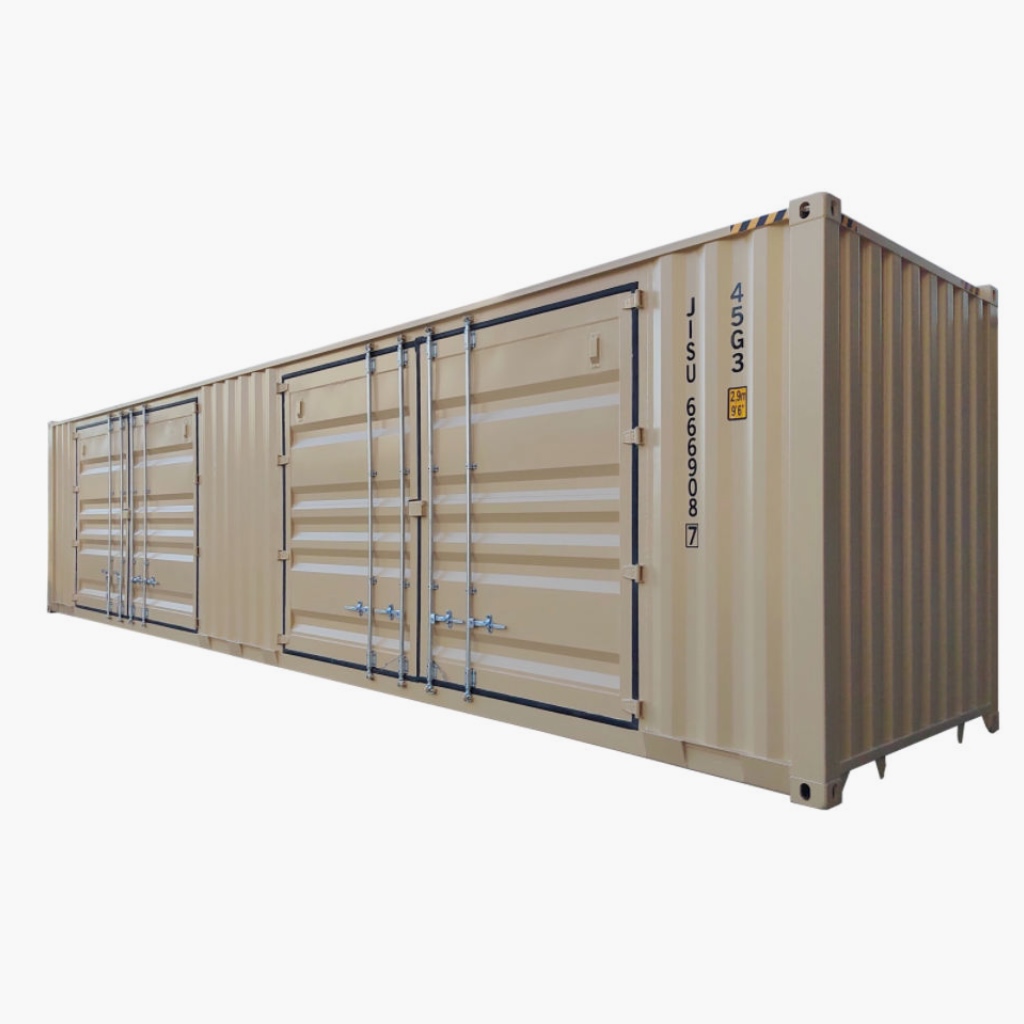

A regularly purchased container family for Hawaii-bound shipments and on-site storage. This reference configuration has two paired door openings along one long side, plus double end doors, giving access to cargo from the side and the end.
Product configuration, sourcing, freight, and Hawaii delivery are reviewed together.
Original reconstruction: outer dimensions follow the supplied HLF-40HSL batch certificate; side-door spacing and hardware follow the photographs. Exact opening dimensions need the side-opening order drawing.
Interactive product view
Rotate the product, zoom into the details and explore the recorded dimensions.
Rotate & zoom · Load on demand
Rendered from the same interactive model. Geometry follows the available references. The specifications above identify which measurements have a documented basis.
Two locking rods per end leaf with brackets, handles and seals. Fixed hinge pads stay on the frame as the leaf rotates.
Two paired door bays with broad corrugated fixed panels in the center and at both ends. Five pressed channels and rods near each meeting edge follow the photograph.
Corner casting with actual aperture geometry, connected to the upper rails and corner post.
40 HC · Documented HLF-40HSL batch
Recorded specifications and configuration choices, kept together for a clear product inquiry.
Confirm for your selected order:

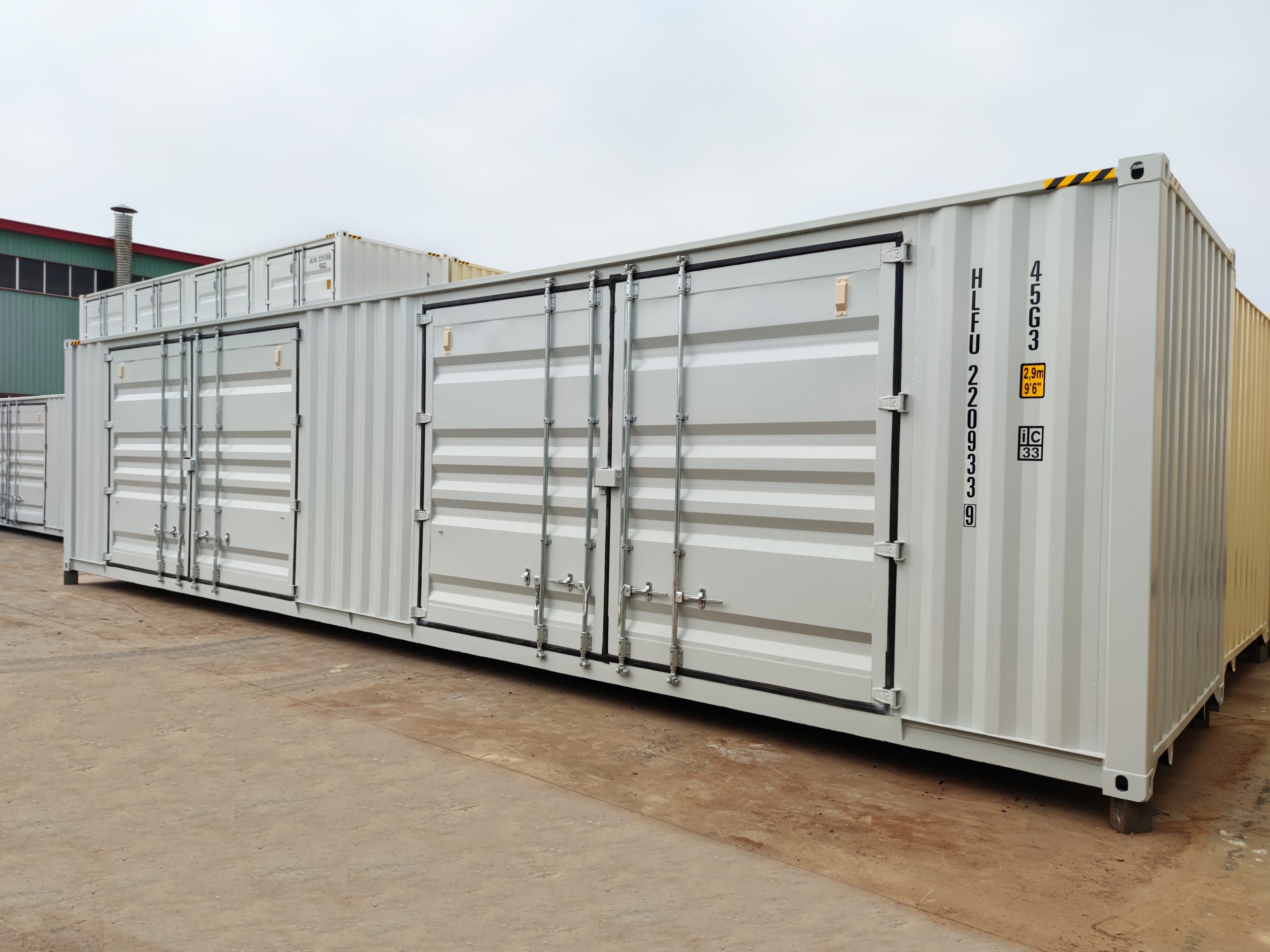

The new side photograph shows two paired openings separated by a broad corrugated fixed panel. Corrugated wall sections also remain beside the outer hinges. The model now preserves these fixed sections when the four side leaves open.
Open the doors to see the separate side and end access. Door panels, locking rods, handles and seals move with each leaf; hinge mounting pads remain on the frame. Five horizontal pressings and locking rods near the meeting edges follow the side photograph. The opening pose is illustrative, not a clearance measurement.
The supplied HLF-40HSL batch certificate lists 12,192 mm length, 2,438 mm width and 2,896 mm height. These values are used for the model envelope and the metric/imperial labels. Internal and clear-opening dimensions still need the matching side-opening plan.
The certificate describes welded weathering steel (Corten A) and a plywood floor. The interior photograph guides the dark floor finish, panel seams, roof corrugations and fasteners. Finish appearance alone does not determine material grade or load capacity.
The documented batch lists 24,000 kg maximum gross mass, 3,960 kg tare, 20,040 kg payload and 74.3 m³ internal volume. The additional 40 HC general-arrangement sheet depicts a different end-opening design and lists different mass and volume values, so those figures are not merged into this product.
Confirm the actual unit, plate details and documentation before shipment.
Plan unloading equipment, firm level supports and space around all required doors.
Site alterations, services and conversion work are scoped separately from container supply.
