A clean, plain pipe end
The pipe terminates in a flat annular cut with an open bore. The model has no flared mouth, molded socket, raised lip or end cap. Black pipe and a blue longitudinal stripe follow the supplied photograph.
← All products
Water & irrigation
HDPE Pipe

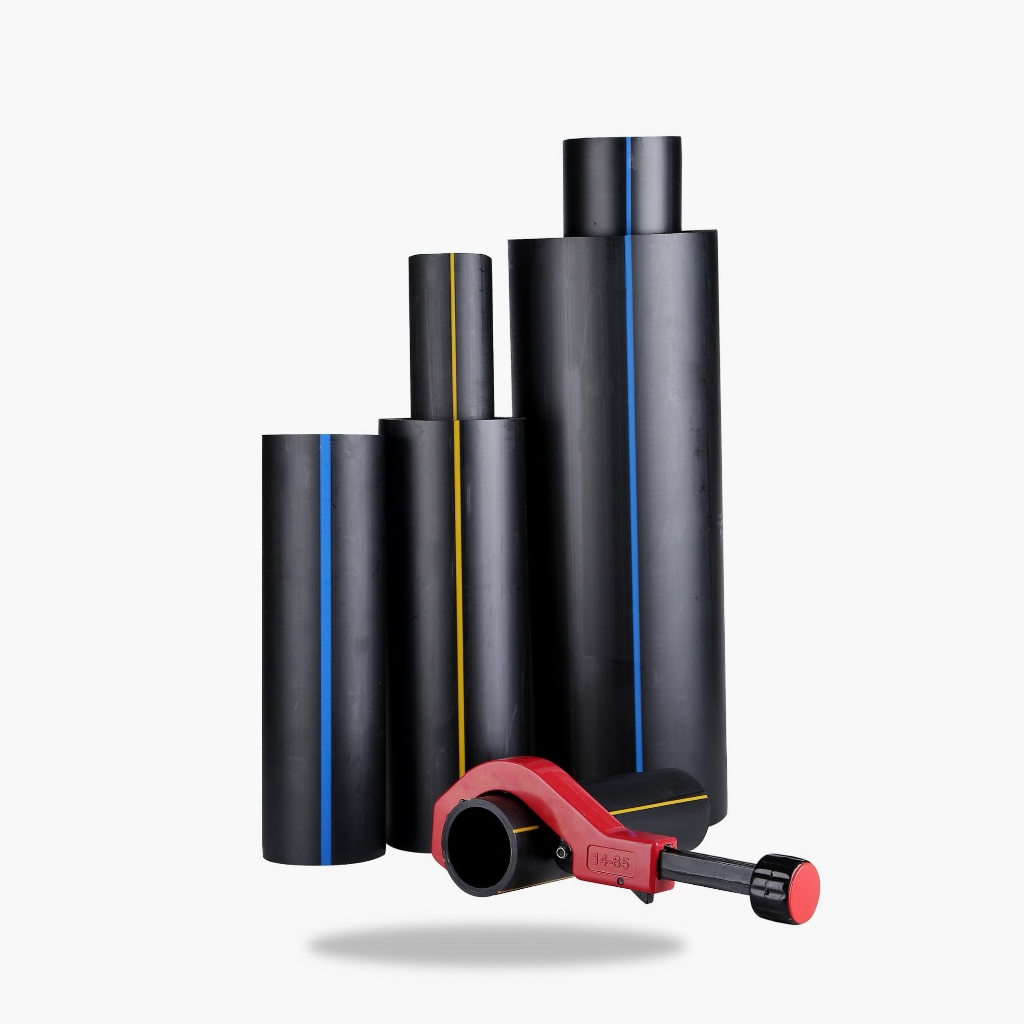

Black polyethylene pipe for agricultural and water-system sourcing, with clean, flat-cut open ends. Compare the recorded outside diameters, wall details and material declarations, then match fittings, coil length and operating conditions to your order.
Product configuration, sourcing, freight, and Hawaii delivery are reviewed together.
Original flat-cut pipe reconstruction. Coil size and short sample length are illustrative, not supplied lengths.
Interactive product view
See how it comes together.
Rotate the product, zoom into the details and explore the recorded dimensions.
1 in PE100 · flat-cut pipe Reference reconstruction
Rotate & zoom · Load on demand
Assembly details
Rendered from the same interactive model. Geometry follows the available references. The specifications above identify which measurements have a documented basis.
Flat annular end face with an open bore. The end is perpendicular to the pipe axis, without a rolled lip, socket or cap.
Continuous coiled pipe and blue longitudinal stripe. The display arrangement does not establish supplied coil diameter or length.
Know what you’re getting.
1 in · 33.4 mm OD · SDR9 record
Recorded specifications and configuration choices, kept together for a clear product inquiry.
- Nominal size
- 1 inch (trade designation)
- Material declared
- PE100 polyethylene; black
- Outside diameter
- 33.4 mm / 1.315 in
- Average wall thickness
- 3.6 mm / 0.142 in
- Series stated in quotation
- SDR9; confirm applicable dimensional standard and tolerances
- End finish
- Plain, flat-cut open endVisual reference
Specification basis & final order details
- User-supplied pipe quotation dated 2026-04-23
- User instruction and supplied pipe photograph
Confirm for your selected order:
- Pressure class at the specified operating temperature
- Coil length and pipe markings
- Applicable dimensional standard and certification
- Hydrostatic, ash and material reports for the selected batch
Materials. Details. Everyday use.
Match pipe and fittings
Use the outside diameter, wall specification and connection method together. A trade name or nominal inch size alone is not enough to select a fitting.
Hydrostatic performance
A meaningful pressure-test result identifies the specimen, test temperature, applied pressure or hoop stress, duration and acceptance criterion. A 100-hour claim will be added only when the matching report is available.

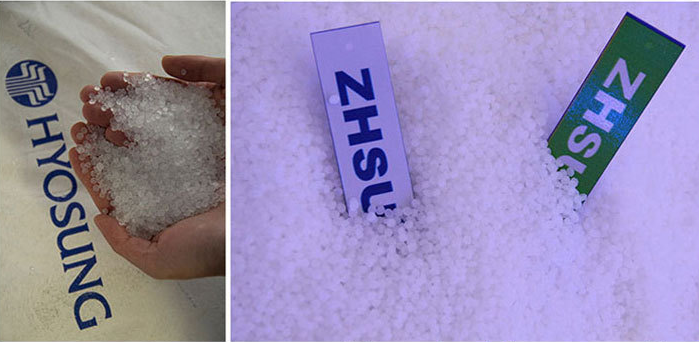

Material and ash testing
Ask for the resin declaration, batch traceability and relevant test report. Ash content needs a stated method and result; it is not a blanket statement that a material contains no additives.
Virgin resin and functional additives
PE pipe compounds can include necessary pigments and stabilizers. A virgin-resin declaration should distinguish recycled content from functional additives. This is material guidance, not a certification claim for the displayed pipe.
Further technical reading
PE100+ Association: PE compounds ↗
Material guidance on PE resin and functional additives; not a test report for this product.
A closer look.
Related procurement records.
2024–2026 · Project recordWater & irrigation
HDPE Pipe procurement
HDPE pipe for agricultural and water-system requirements. Recurring procurement has included coiled pipe, with diameter, wall thickness, pressure requirements, and fittings reviewed together.
Explore project record →Where it fits.
- Agricultural irrigation
- Water distribution planning
- Long pipe runs
Plan your order.
- Provide flow and operating pressure requirements.
- Confirm potable or non-potable application and required certification.
- Specify total length, preferred coil length, and fittings.
From packing to Hawaii.
Agree coil lengths, end protection, bundle dimensions and identification markings.
Include the fitting schedule and review storage and handling instructions for the selected pipe.
We coordinate sourcing and logistics. Final supply, freight and delivery arrangements are agreed for your order.
Request HDPE Pipe for Hawaii.
Tell us your quantity, intended use, delivery location and timing. Your selected configuration is included in the inquiry.
