Panel or gate: choose the right piece

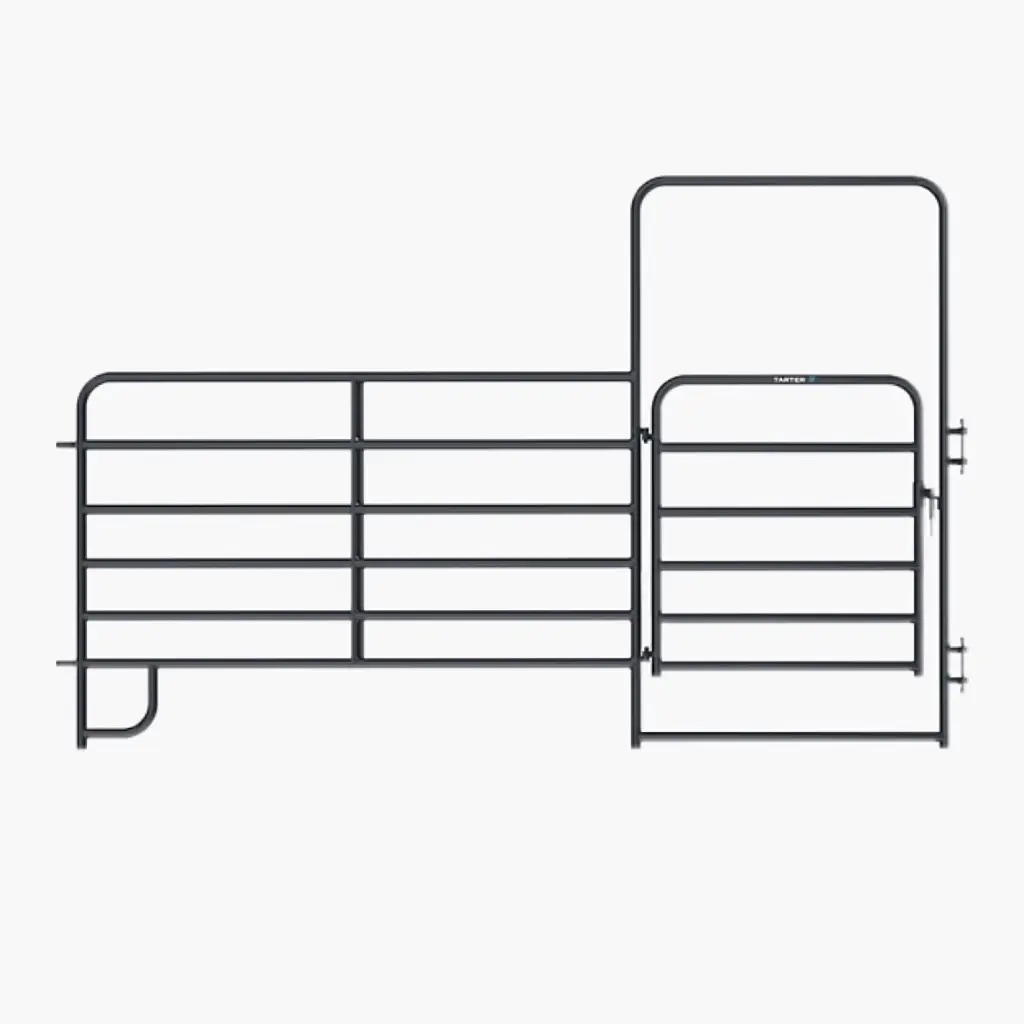

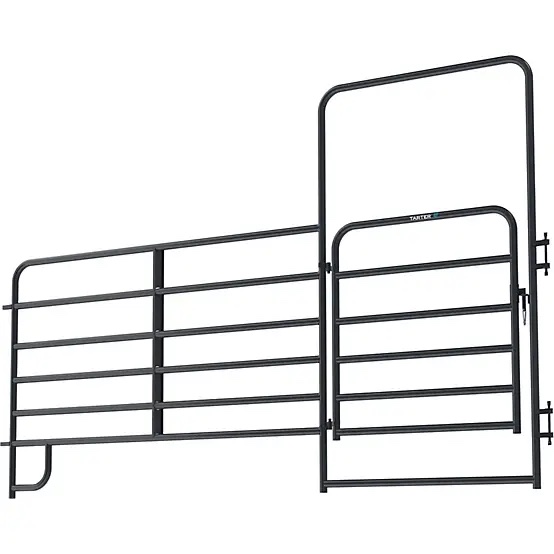

The fixed panel closes an enclosure run. The walk-through assembly adds a pedestrian entrance under a tall frame, with a fixed panel beside it. They have separate specifications and 3D models.
← All products
Fencing & ranches
Corral Panels & Walk-through Gates
Build the enclosure with fixed panels and a separate walk-through gate assembly. The new drawings specify Ø48 × 1.5 mm tubing. Compare the two configurations, inspect the removable joining pins and open the pedestrian gate in 3D.
Product configuration, sourcing, freight, and Hawaii delivery are reviewed together.
Original reconstruction of the new Ø48 mm panel drawing. The gate assembly is a separate configuration in the selector.
Interactive product view
See how it comes together.
Rotate the product, zoom into the details and explore the recorded dimensions.
Fixed corral panel · Ø48 mm Reference reconstruction
Rotate & zoom · Load on demand
Assembly details
Rendered from the same interactive model. Geometry follows the available references. The specifications above identify which measurements have a documented basis.
Eye-headed removable pin, open welded sleeves and green retention cable follow the close-up photographs.
Each loop returns from the bottom rail to the outer upright. Two separate vertical braces support the panel.
Know what you’re getting.
Fixed panel · 3660 × 1830 mm
Recorded specifications and configuration choices, kept together for a clear product inquiry.
- Height × width
- 1830 × 3660 mm / approximately 6 × 12 ft
- Tube size shown
- 48 mm outside diameter × 1.5 mm wall
- Panel structure
- Six horizontal levels, two vertical braces and two rounded return feetVisual reference
- Connection
- Removable steel pins, open sleeves and green retention cablesVisual reference
Specification basis & final order details
- User-supplied 3660 × 1830 panel drawing
- User-supplied joining-pin photographs
Confirm for your selected order:
- Unit mass for this Ø48 mm configuration
- Surface-treatment process, coating thickness and inspection record
- Final connector locations and hardware quantities
- Suitability for the intended animals, layout and ground conditions
Materials. Details. Everyday use.
Pins that stay with the panel
The supplied close-ups show a removable eye-headed pin passing through welded sleeves, with a green retention cable. The cable keeps the loose pin attached during handling; it is not a load rating.
Rounded frame and return feet
Rounded top shoulders, multiple horizontal rails and curved bottom returns follow the new drawings. Two vertical braces support the full panel; the shorter fixed section beside the gate has one.
Keep the two tube specifications separate
The new drawings specify Ø48 × 1.5 mm tubing. The earlier contract lists Ø42 × 1.5 mm tubing, a nominal panel mass and galvanizing after fabrication. Those earlier values are retained only under their own configuration.
A closer look.
Related procurement records.
2024 · Project recordFencing & ranches
Corral panel procurement
A product family selected for ongoing Hawaii sourcing. The original purchase contract supports the configuration below; it does not establish arrival.
Explore project record →Where it fits.
- Ranch enclosures
- Panel runs and paddocks
- Livestock handling layouts
Plan your order.
- Specify fixed-panel and walk-through-gate quantities separately.
- Provide enclosure dimensions, animal type, entrance requirements and terrain.
- Agree the selected tube specification, finish, joining pins, latch and gate orientation.
From packing to Hawaii.
Plan panel bundles, protection between galvanized surfaces and the complete pin count.
Confirm bundle weight, forklift access and unloading space before shipment.
We coordinate sourcing and logistics. Final supply, freight and delivery arrangements are agreed for your order.
Request Corral Panels & Walk-through Gates for Hawaii.
Tell us your quantity, intended use, delivery location and timing. Your selected configuration is included in the inquiry.
